In-flow signal reduction

For slow-flow signal suppression, use the In-flow signal reduction User CV with 2D Fast GRE and 2D Fast SPGR to minimize the artifact. The User CV is available regardless of the # of TE per scan value.

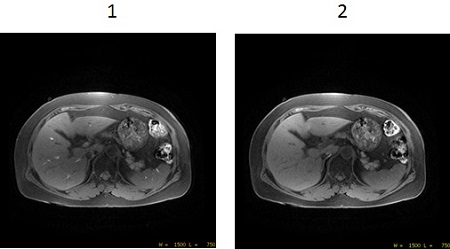

Figure 1. Images from the last slice of the first acquisition in a multi-acquisition series

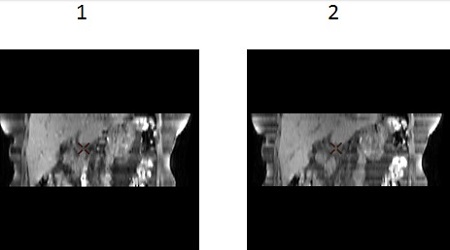

Figure 2. Reformatted images
Table 1. Image legend
NumberDescription
12D Fast SPGR acquired with In-flow signal reduction User CV set to OFF (=0).
22D Fast SPGR acquired with In-flow signal reduction User CV set to ON (=1).
