Annotation: add/erase

Before you begin

Consider this information when you use the Annotation tools.
Annotation allows you to comment for labeling purposes or draw attention to a specific area of interest. Multiple areas of annotation can be added to an image and then later deleted. There are two annotation methods.
  • Annotation without an arrow
  • Annotation with an arrow that includes an on-screen arrow to identify specific structures, as well as to make text entries

About this task

Use these steps to add, propagate or erase annotation to your images.

Step-by-step instructions

  1. Open the Viewer.
  2. To write a message on the viewport, follow these steps.
    1. Click the viewport in which you want to write a message.
    2. From the Display tab, click the Annotation icon.

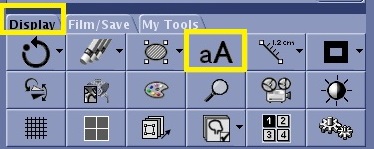

      Figure 1. Annotation icon on the Display tab


    3. In the Annotation text box, edit the annotation as needed.
      Click and drag the open box to define the text box size.

    4. Move the cursor into the text box and enter a message. The tool automatically wraps the text and expands the box size as you enter text.
    5. Insert the cursor within a string of text and type information.
    6. Select existing text and either type over it or press Delete.
  3. To add or remove an arrow to the text box, click Select Object icon and select or de-select Include Arrow on the Annotation screen.


    1. Click and drag the arrow tip to position the arrow.
    2. Click and drag the arrow line to move the arrow and box as one unit.
    3. Click and drag the solid box to move the text box.


    4. Click and drag the open box to change the text box size.


  4. After you have added annotation to your image, use these steps to duplicate the annotation to other images.
    1. From the Display tab, click the Selected Object icon.
    2. Make a propagation selection.
      1. Select All images in series to have annotation changes apply to all images within the series.
      2. Select This image forward to only have the annotation changes apply to images with a larger number within the series.
      3. Select Range and specify a range of slices.
    3. Click Apply.
  5. To remove annotation, follow these steps.
    1. Confirm that the annotation is active (yellow). If it is not, click the annotation to make it active.
    2. From the Display tab, Erase/Hide menu, click the Erase icon to remove the active annotation on the active viewport.
    3. To delete the annotation message from all images within the current series, click the Erase All icon.
