Image annotation

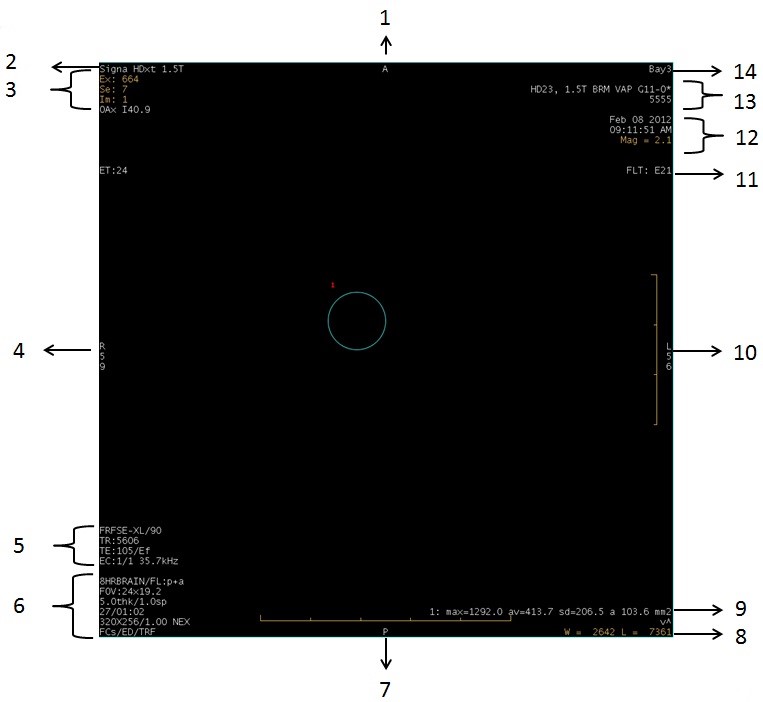

Figure 1. Image annotation
Table 1. Image annotation descriptions
NumberDescriptions
1Top marker
2System Name
3Exam/Series/Image
4Left marker
5Scan parameters
6Scan bottom parameters
7Bottom marker
8Window width and level
9Graphic results from ROI, measurements, etc.
10Right marker
11Filter
12Date and time scan was acquired and magnification
13Patient information: accession number, name, gender, age, identification number, and date of birth
14Hospital name
