About this task

Use these steps to toggle on/off the 2D graphic Rx scan lines on the localizer images.

You can select a preference for the slices to show or hide all the time from the System Preference screen. For details see Graphic Rx Slices.

Step-by-step instructions

  1. From the Graphic Rx toolbar, click the Graphic Rx Tools menu icon.
  2. From the Graphic Rx Tools menu, click the Show Slices check box.

    Result

    The 2D slices display within the scan range.

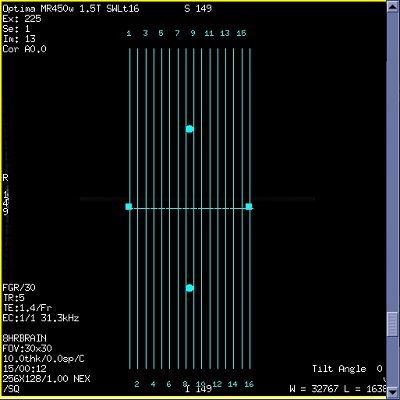

    Figure 1. Show slices option On
  3. From the Graphic Rx Tools menu, click the Show Slices check box again, to turn off the slices lines.

    Result

    The first and last slices and the center of the slice range are displayed.
    Figure 2. Show slices option Off
