Logs

About this task

Use these steps to check the IPM operations that have occurred and their status.

Step-by-step instructions

  1. Open the Service browser.
  2. From the Configuration tab of the Service browser, click Imaging Protocol Manager (IPM).
  3. From the Service Browser, click the Logs tab.

    Result

    The screen displays the status of the transactions and the corresponding log details.

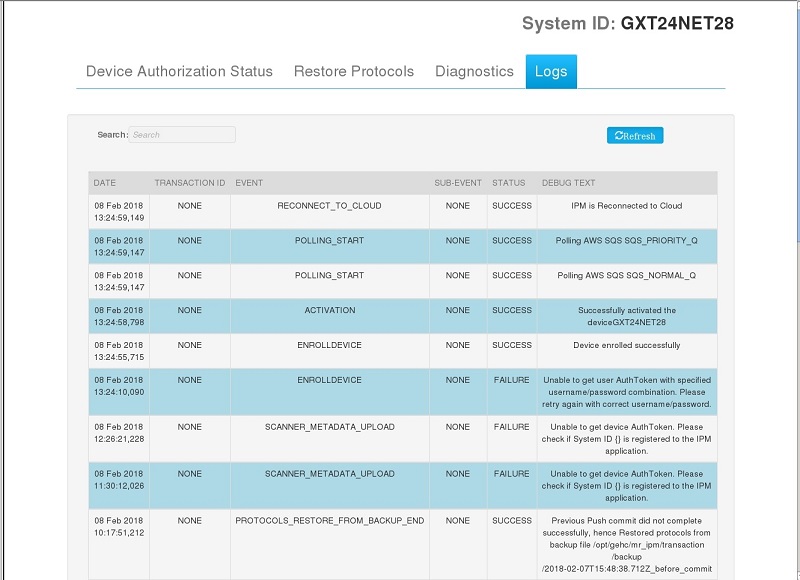

    Figure 1. Logs tab
  4. Enter text in the search field to display details of a specific transaction. For example type in PULLS to display the logs related to completed PULLS transactions.

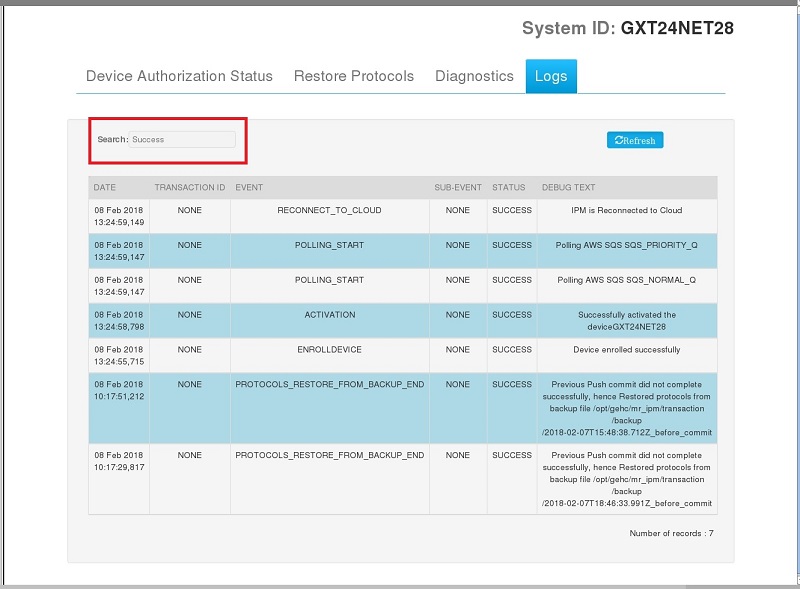

    Figure 2. Search text field
  5. Click Refresh to update the screen.

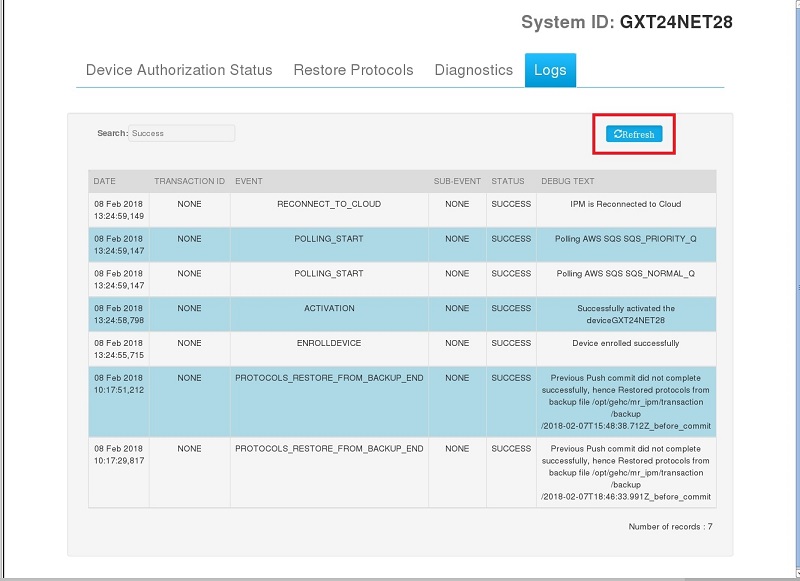

    Figure 3. Refresh button
