Adjust voxel correction

About this task

Use these steps to remove the effects of the water peak tail and lipid general trend on a selected region of interest on a multi-voxel spectroscopy series.

  • Use Phase Correction to flatten the spectrum baseline.
  • Use Frequency Shifting to reset spectrum shifts for selected spectra or all spectra in the data set.
  • Use the baseline correction to correct a wavy pink line baseline. Baseline is defined by all points outside metabolite ranges. In other words, all data points that are not defined as metabolites are used to generate the baseline. The baseline is indicated by the blue line.

Typically, use the following steps if there is a visible change in the baseline, i.e. the blue line at the bottom of the spectrum indicating the metabolite width is not a straight line.

Each time a voxel is corrected, it appears in orange color.

Figure 1. Blue line is wavy and not straight


These steps assume you have launched a spectroscopy series.

Step-by-step instructions

  1. From the spectroscopy Review Steps, click Spectroscopy.
    • Note: that Brain or Prostate precedes Spectroscopy, based on the selected data set.
  2. From the Figure 1, click Voxel Correction tab.
  3. From the Figure 1, click either Selected voxels or All voxels.
    • If Selected voxels is chosen, make active the selection to be corrected (voxel(s), ROI).
  4. Under the Phase correction section, follow these steps to apply phase correction.
    1. Click and drag the slider until the spectrum baseline becomes flatter or the peak inverts. The spectrum updates as you move the slider.
    2. Type and enter the desired phase correction value in the blank text field.
      • The spectrum viewport automatically updates.
      • The slider automatically resets to 0.
  5. Under the Frequency Shifting section, follow these steps to apply shifting correction.
    1. Click and drag the slider to match the peaks with the theoretical peak reference. The spectrum updates as you move the slider.
    2. Type the desired shift correction value in the blank text field.
      • The spectrum viewport automatically updates.
      • The slider automatically resets to 0.
    3. Select the corrected voxel and the Frequency shifting value is displayed in the graph viewport.
    4. If desired, click the metabolite option button to label the spectrum peaks.
  6. From the Baseline Correction section, click Apply.
    • You may chose to Apply the correction any time you alter the phase or frequency.

      Click Reset to change the individual values back to the factory settings or click Reset All to change all values on the Voxel Correction tab to the factory settings.

      The top right side of the graph view, indicates voxel correction for the phasing shift, frequency shift and the baseline correction.

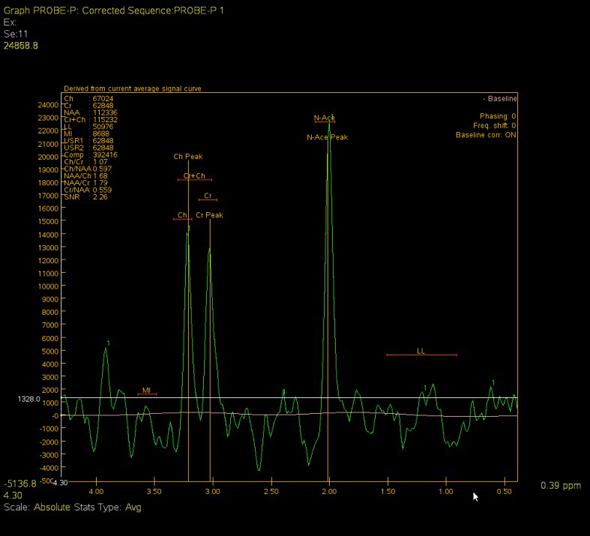

      Figure 2. Note the peaks labeled and corrections made from the Voxel Correction tab are annotated in the upper right corner of the spectrum
