Measure an angle

About this task

Use these steps to create an angle measurement.

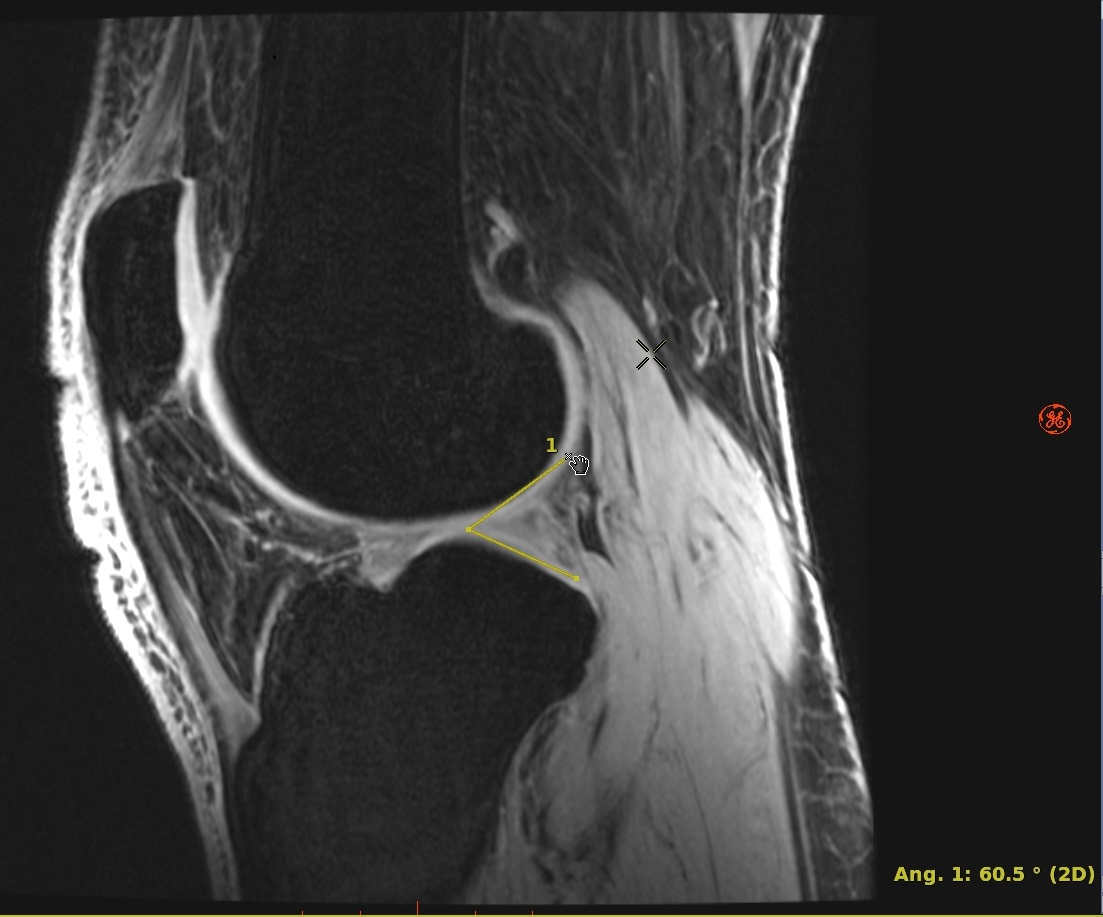

Figure 1. Angle measurement

Step-by-step instructions

  1. Open the MR General Review.
  2. From the Measure/Annotate Toolbar, click the Measure Angle icon ().
  3. Place the cursor on the image and click to deposit three points.
  4. To reshape an angle, see the resize/rotate image graphic procedure.
  5. To remove the angle measurement, see the remove image graphics procedure.
