HIS/RIS

The ConnectPro MR application allows you to download a modality worklist to your MR system. The MR system must be configured to obtain data from the HIS/RIS system and to map protocols to action items. The actual configuration must be done by a service engineer with the assistance of the facility’s Information Technology department. Through the HIS/RIS and SCP tabs on the Guided Install panel, the server and port setup and the SCP (charge codes used by the scanning facility when billing insurance) can be established.

Figure 1. HIS/RIS screen

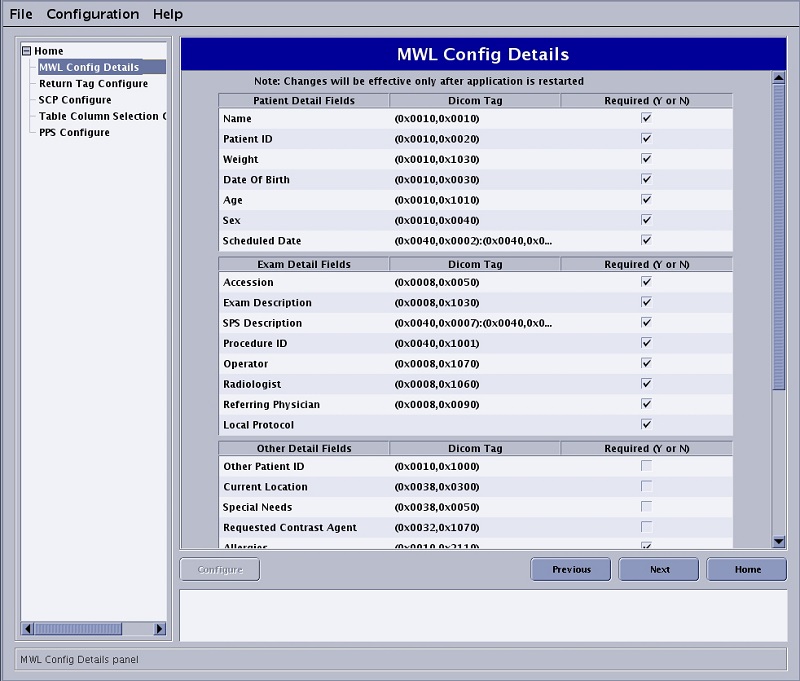

MWL Config Details

Displays the Modality Worklist fields that can be selected or deselected by checking the Required box.

Return Tag Configure

Displays the refresh tag fields that can be selected or deselected by checking the Required box.

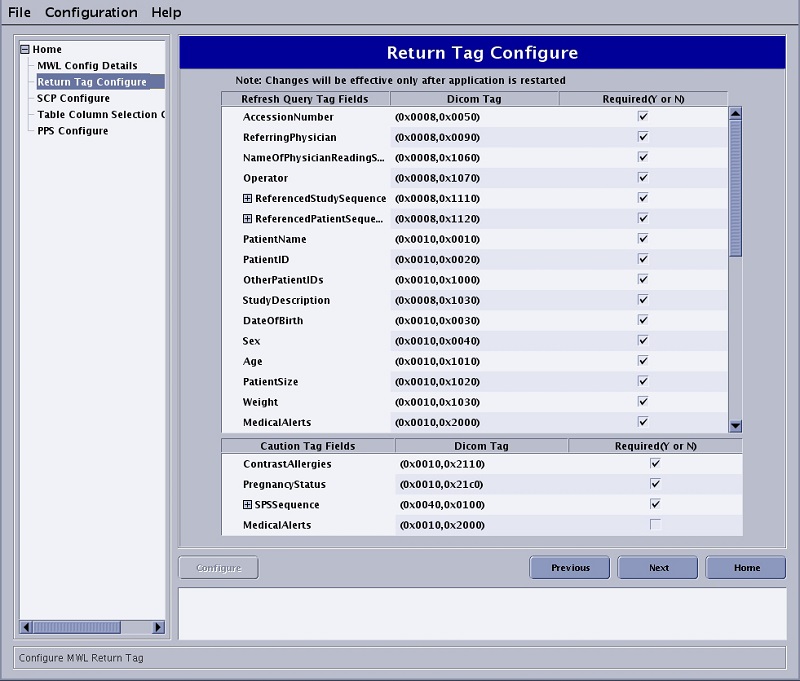

Figure 2. Return Tag Configure screen

SCP and PPS Configure

Displays fields that need to be completed so that your MR system communicates with your HIS/RIS system.

Note: The Station Name field, which corresponds to AE Title, is limited to 16 characters. The lock icon provides a secure connection.
Figure 3. SCP Configure screen

Table Column Selection Configure

Displays the column headers that appear in the Worklist Manager. They can be selected or deselected by checking the Required box.

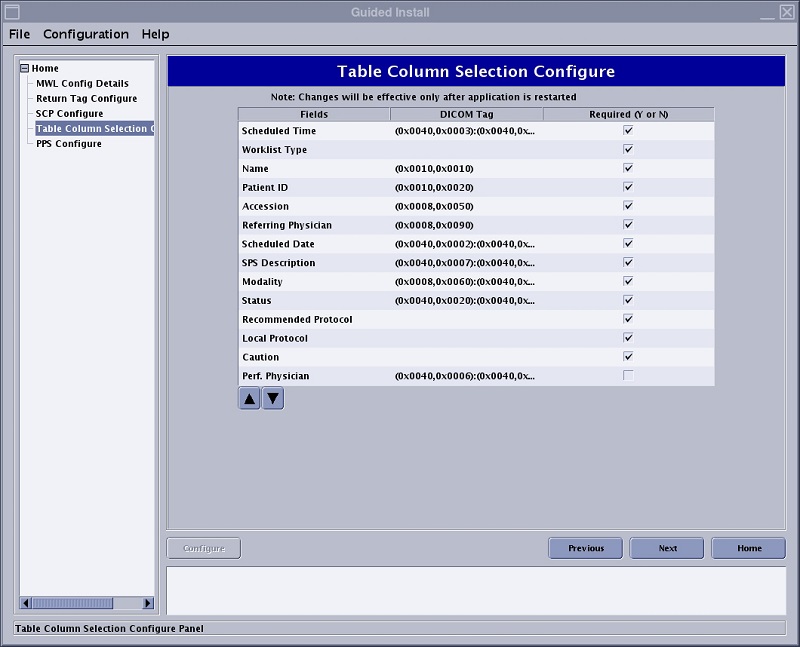

Figure 4. Table Column Selection Configure screen. The order of the Field list may vary.

PPS Configure

Allows you to add, edit or ping PPS stations.

Figure 5. PPS Configure screen
