Fuse tracts with other objects and then hide/show the objects

About this task

Use these steps to hide or show objects.

Step-by-step instructions

  1. Fuse fibertrak(s) or other objects with the anatomical image. For details, see Fuse images/maps.
  2. From the DTI screen, click Display Objects.
    Display Object is a list of fiber track objects. An open eye displays the object on the fiber track viewport and a closed eye hides the object on the fiber track viewport. The objects can be the orthogonal planes, a volume rendered 3D head, a 2D anatomical image, individual fiber tracks, etc.
  3. Hide (eye closed icon) or show (eye open icon) any of the display options.

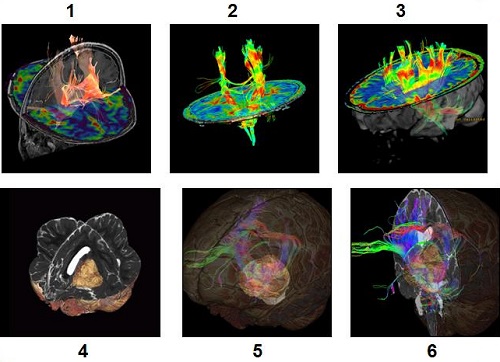

    Figure 1. Examples of various objects hidden/shown


    Table 1. Image legend
    NumberDescription
    1Fiber tracts with standard color scheme merged with rCBV map and T1 BRAVO.
    2Fiber tracts with FA color scheme merged with FA map.
    3Fiber tracts with FA color scheme merged with FA map and 3D image.
    4Auto Contoured tumor added to fiber tract image (use Add ROI feature), tracts hidden and merged with a volume rendered 3D image.
    5Tumor and fiber tract shown and merged with volume rendered 3D Cube T2 image.
    6Tumor and fiber tract shown and merged with volume rendered 3D Cube T2 image.
