FiberTrak screens

The FiberTrak screen displays when a DTI series is selected from the Worklist Browser, READY View is launched, and a DTI protocol is selected.

For processing threshold details, see Threshold adjustment.

Review Steps

Review Steps content may vary if they have been customized and saved.

Figure 1. Review Steps for FiberTrak protocol

FiberTrak screens

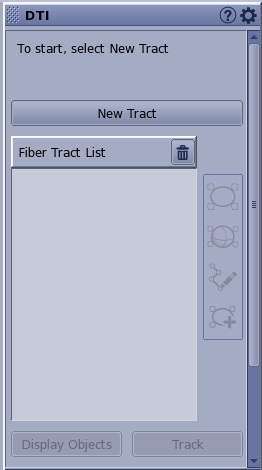

Figure 2. Diffusion Tensor FiberTrak screen

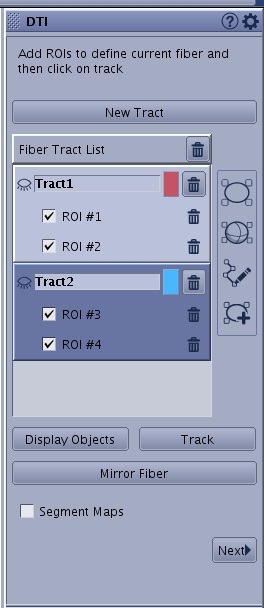

Figure 3. FiberTrak with track deposited

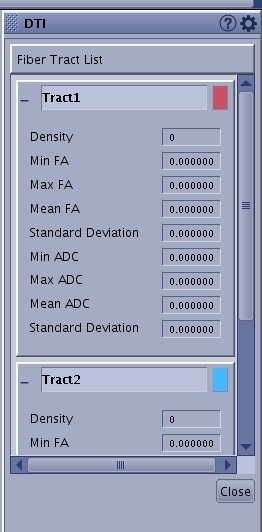

Figure 4. Fiber Trak list when Next button is selected

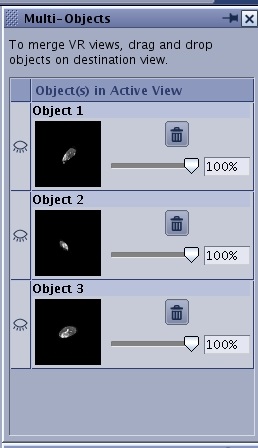

Figure 5. Multi-objects screen from Display Object button
  • Display Object is a list of fiber track objects. An open eye displays the object on the fiber track viewport and a closed eye hides the object on the fiber track viewport. The objects can be the orthogonal planes, a volume rendered 3D head, a 2D anatomical image, individual fiber tracks, etc.

Tools

The Tools icon () displays additional DTI FiberTrak selections.

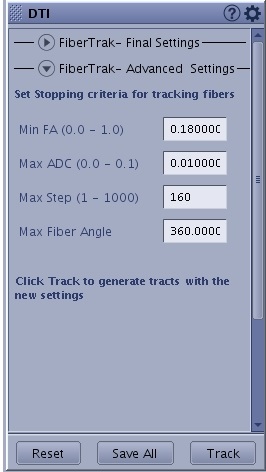

Figure 6. FiberTrak Advanced Settings
  • Min FA: the anisotropy threshold below which the fiber computation will not occur.
  • Max ADC: the ADC threshold above which the fiber computation will not occur.
  • Max Step: controls the maximum length of the tracked fibers. It controls how many steps are made before terminating the tracking of the current fiber.
  • Max Fiber Angle: used to terminate the tracking of a fiber if the change in direction of the fiber between two adjacent segments exceeds the specified angle. A value of 360 degrees essentially removes the angle threshold altogether because it permits any angle.

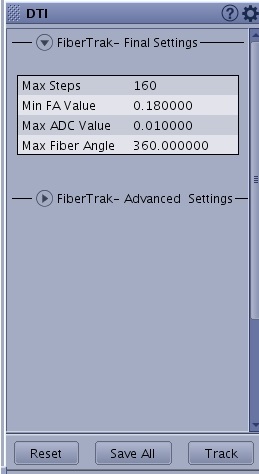

Figure 7. FiberTrak - Final Settings
