Gradient Echo Chemical Shift artifact

Chemical shift effects are seen when a voxel contains both fat and water and the TE is timed for the vectors to be in or out of phase.

Figure 1. 1 = vectors in phase and 2 = vectors out of phase

Boundaries between fat and tissues with much water are either bright or dark. For some PSDs, such as FSPGR, the TE can be selected as In Phase or Out of Phase. When In Phase is selected, the fat/water border is bright and when Out of Phase is selected, the fat/water boundary is dark and structures can appear as if they have been outlined with a black marker.

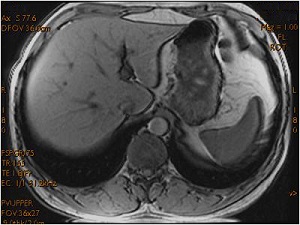

Figure 2. Fat/Water in phase

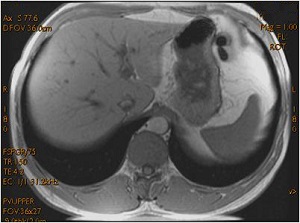

Figure 3. Fat/Water out of phase

To minimize the black border outline effect, select In Phase as the TE parameter, or manually enter a TE parameter as close to the fat/water in-phase time as possible.

Table 1. Phase and TE values
Phase: In or Out1.5T
In Phase0.0
Out of Phase2.2
In Phase4.4
Out of Phase6.6
