Change the order of the protocols on the Protocol Selection screen

About this task

Use these steps to change the order of the protocols on the Protocol Selection screen.

Step-by-step instructions

  1. Open the Volume Viewer.
  2. Click the + icon from the Review Steps area, to open/close the Add a Review Step screen.
  3. Click Protocol Page to view the Protocol Selection screen.
  4. From the Protocol Selection screen, click the protocol you want to rearrange.

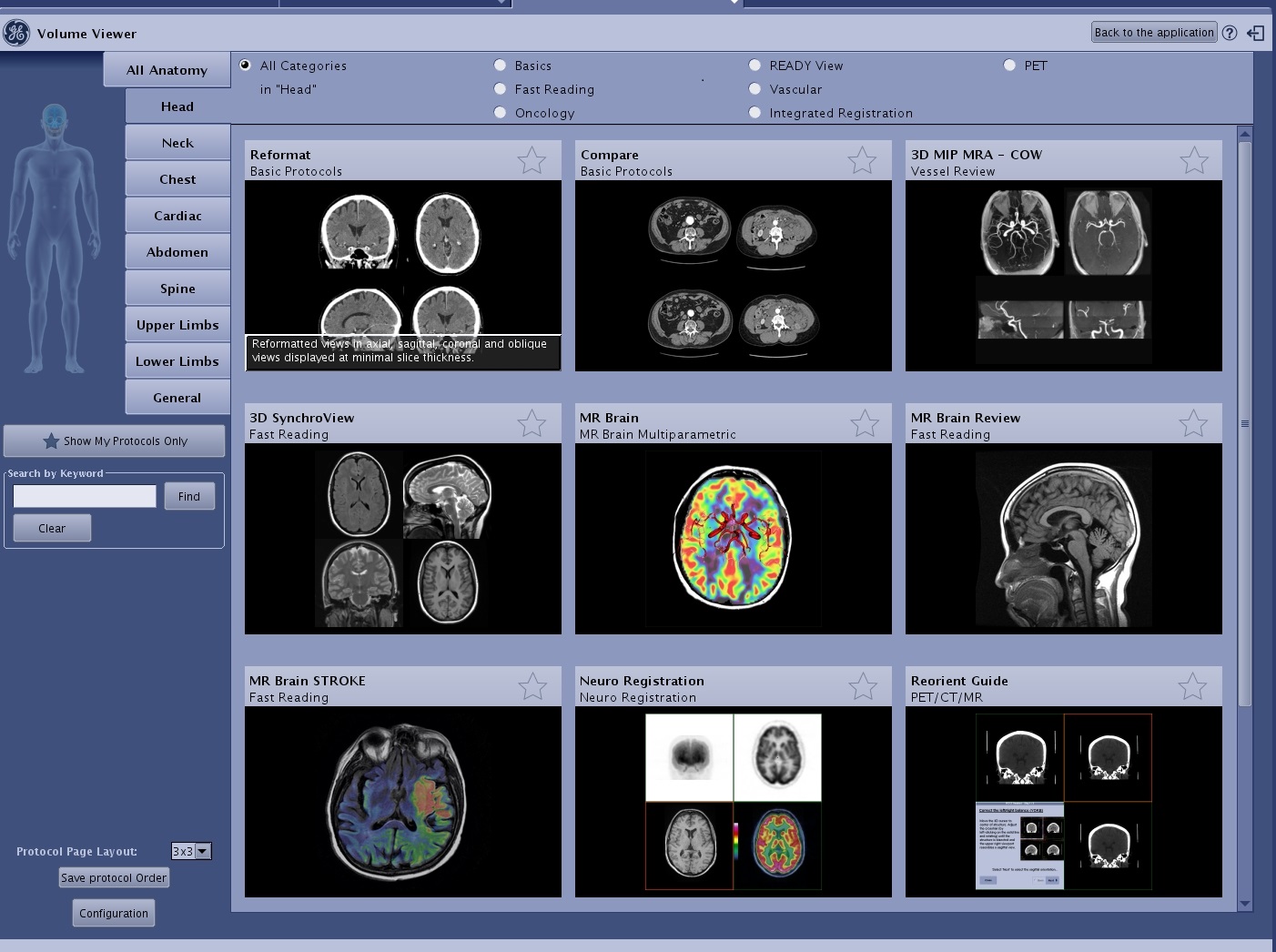

    Figure 1. Protocol Selection screen


    • If it’s a Favorite protocol, first must deselect the star on the protocol.
  5. Click the edge of the protocol and drag and drop it to the desired location.

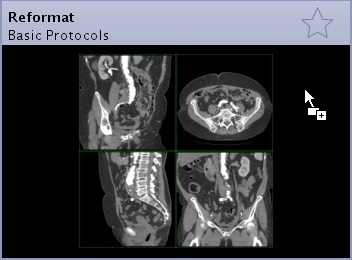

    Figure 2. Click edge of protocol


    • You cannot drag and drop protocols when All Anatomy is selected. First select an anatomy category (Head, Neck, Chest Cardiac, Abdomen, etc.) to reorganize the protocols.
  6. In the lower left corner of the Protocol Selection screen, click Save protocol Order.
    Figure 3. Save protocol Order

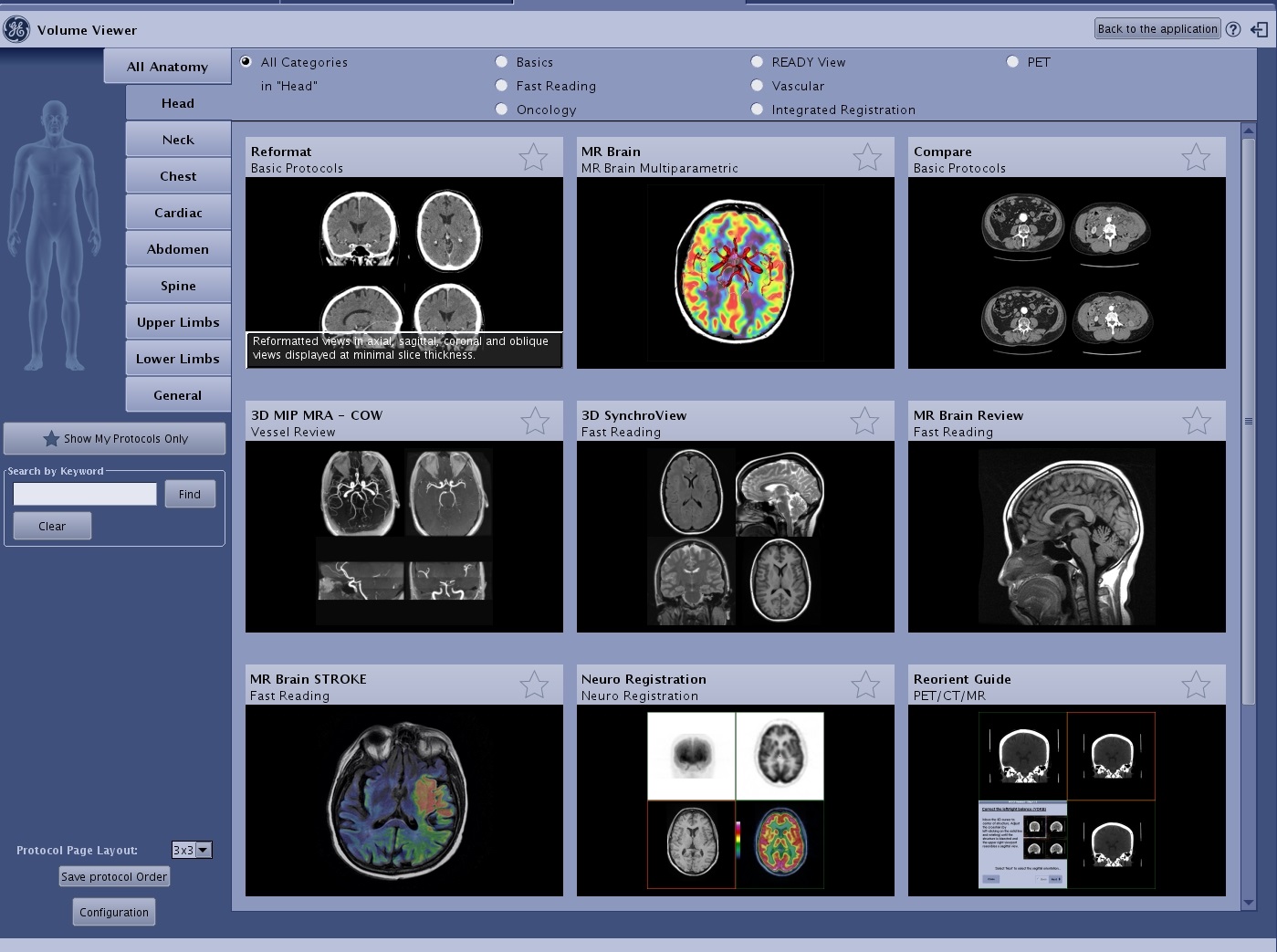

    Figure 4. The Protocol Selection screen displays the new protocol order
