Cardiac anatomy

View an image plane and refer to the legend below for the corresponding cardiac anatomy.

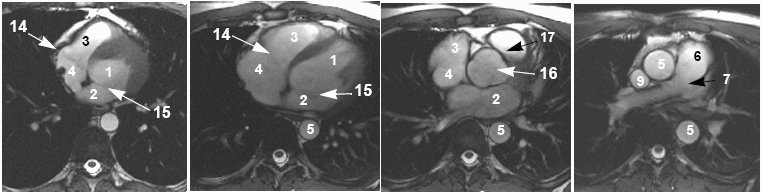

Figure 1. Axial

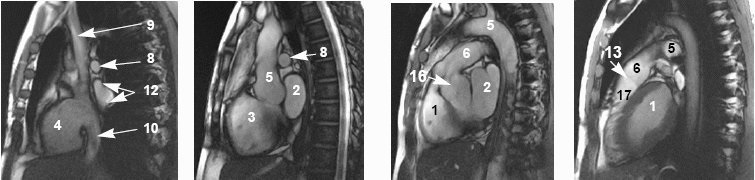

Figure 2. Sagittal

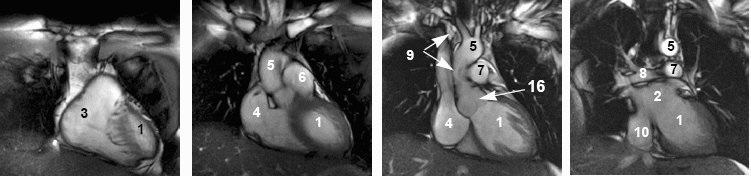

Figure 3. Coronal
Table 1. Image legend
Cardiac anatomy image legend
1 = left ventricle

2 = left atrium

3 = right ventricle

4 = right atrium

5 = aorta

6 = pulmonary artery

7 = left pulmonary artery

8 = right pulmonary artery

9 = superior vena cava

10 = inferior vena cava

12 = right pulmonary vein

13 = pulmonary valve

14 = tricuspid valve

15 = mitral valve

16 = aortic valve

17 = ventricular outflow tract
