DWI screens

The DWI screen displays when a Diffusion-weighted series is selected from the Worklist Browser, READY View is launched, and a DWI protocol is selected.

For details, see the DWI Optional procedure.

For processing threshold details, see Threshold adjustment procedure.

Review Steps

Review Steps content may vary if they have been customized and saved.

Figure 1. Example of Review steps with a single DWI series selected
Figure 2. Example Review steps with two DWI series selected

ADC screens

If a single series is selected then the ADC screen heading display as ADC. If the maximum of 2 DWI series are selected, then the heading changes to ADC2.

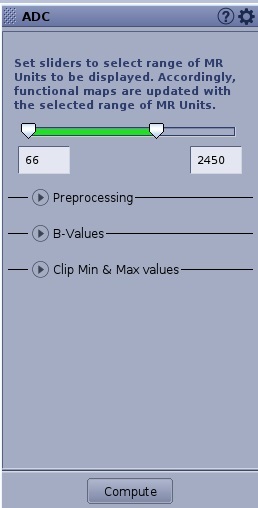

Figure 3. DWI screen
Figure 4. Preprocessing selection
Figure 5. B-value selection
Figure 6. Clip Min & Max values selections

Tools

The Tools icon () displays additional ADC selections.

Figure 7. Final Settings display

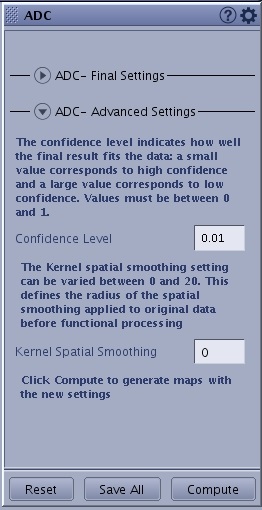

Figure 8. Advanced Settings selections
