Set up in-room display

About this task

Use these steps to view the various tabs from the in-room monitor display.

Step-by-step instructions

  1. From the in-room display, use the touch screen on the magnet cover to access its functions. There are multiple tabs available:
    TabDescription
    Patient SetupThis tab shows the patient information and allows selection of weight, Auto Start, and patient orientation.
    Scan TimeThis tab shows scan time and table location.
    GatingThis tab shows waveforms and allows selection of lead and invert. Press the Gating tab on the in-room monitor to turn it on.
    • If gating is already turned on, the waveforms selected from the operator console are shown.
    • If gating was turned off from the operator console and the in-room display shows the gating tab, switch to another tab and return to the gating tab to turn on gating again.
    CoilsThis tab shows the currently connected coil.
    Fan LightThis tab controls the bore fan speed and the light brightness.
  2. If any of the following events do not occur within 60 minutes, the screen saver appears on the in-room display:

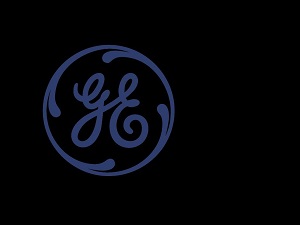

    Figure 1. Screen saver
    • new exam or end exam
    • change to any patient data displayed on the IRD
    • change to the table position
    • change to the connected coil
