READY View work area

Open READY View to display the READY View work area.

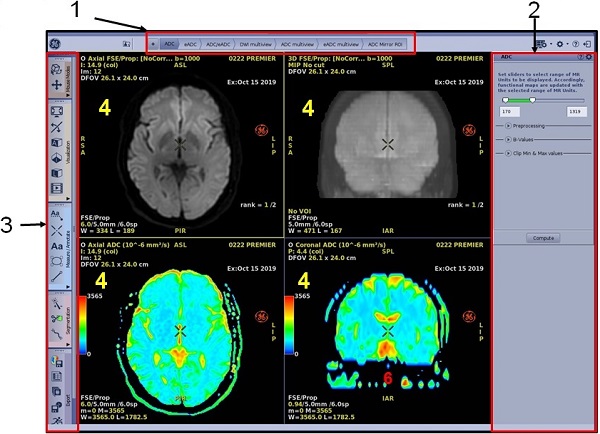

Table 1. Image legend
Number	Description
1	List of review steps
2	Application panels
3	Source image/ image maps/graph viewports
4	Tool menus that can be displayed at the top or side of the image viewports

Review steps area

Review steps are displayed at the top of the READY View screen: the displayed review steps correspond to the series that exist in the current exam and were selected from the Series Loading Page.

Mini Patient List

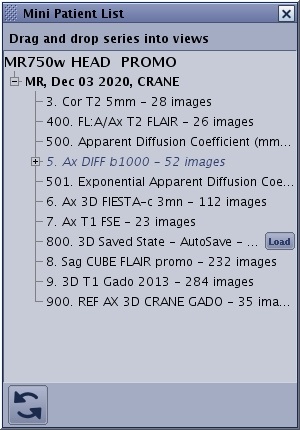

Click the Mini Patient List icon () to open the list of series for the currently active exam. The series already present in the session are shown in italics. To add series not present in the session, select a series from the list and drag and drop it into any viewport.

Click the X on the Mini Patient List screen to close the Mini Patient List and return to the current review session.

Protocols

For more details, see Open the Protocol selection work area.

The Plus icon () opens/closes the Protocol List screen, from which you can select another review step. Protocol list is the list of all the protocols and review steps compatible with your data set. The list is filtered based on the selections made from the Protocol Filters menus.

Click My Protocols to only display protocols you have chosen as favorites.

Type any key words in the Search field to easily find protocols within the protocol list.

The protocol list is ranked alphabetically with first the favorite protocols and in a second part, all the other protocols.

Click Protocol Page to open the Application Selection screen. If a new protocol is chosen within the protocol page, the loaded/selected series is launched into a new session and the previous session is lost.

Application screens area

The content in this panel changes based on the currently active application and the selected review step.

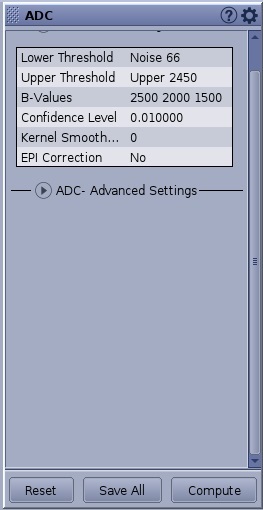

Figure 3. Example of an ADC application screen area

Screens that have a hash-marked symbol () in front of the screen name can be picked up and moved to a new location on the screen.
The Tools icon () displays additional selections. It is a toggle button that moves the screen area between two sets of screens.
The Help icon () at the top of each panel is a toggle button. It opens and closes a screen with explanations about the application screen.

Source image/image maps/graph viewports

The content in the viewports changes based on the currently active application and selected review step. The viewport can display images, image maps, spectrum, graphs, etc.

Tools panels

Note: This panel may be placed either on the user interface at the top of the screen (horizontal display) or at the side of the screen (vertical display).

Each tool panel has an arrow in the lower right corner. Click on the arrow to see other icons in that tool group. Click on an icon and many display a screen in the upper right corner of the user interface.

For details on all tools, see MR General Review (Volume Viewer).
