Magnet displays

This section describes the magnet displays available on your MR system.

In-room display (IRD)

The IRD is a shielded touch panel color monitor. The monitor and scan room interface provides immediate feedback on patient information, preparation, coil setup, coil connectivity, and gating information.

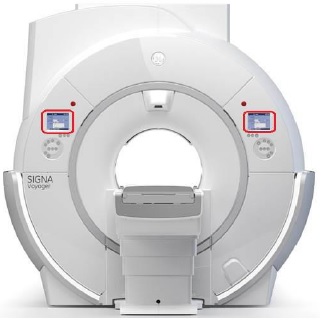

Figure 1. In-room monitor located on both sides of the magnet front

The In-Room Display has multiple tabs. For details, see:

Setup In-Room Display procedure
In-room Display gating screen
In-Room Display scan time and table location screen
In-Room Display coil screen
