Magnet controls

Magnet controls provide the method for setting up patient comfort and scanning. The magnet controls are on two panels located on both sides of the magnet cover. The control panels have the same buttons, they are just located in a mirror image of each other. The control panel may have a subset of backlit buttons that light up to show what typically is the next step in the workflow. The lights are only typical next steps. You can choose to select another button at any time.

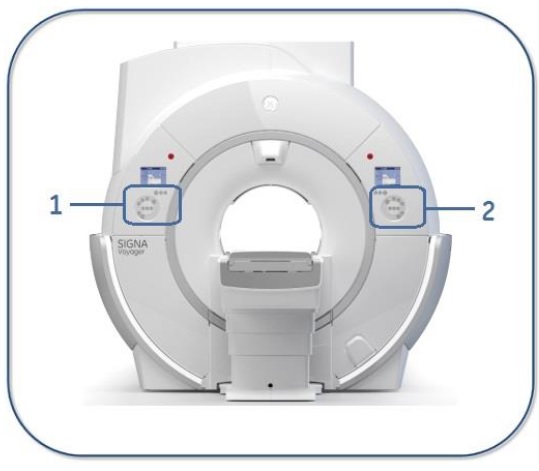

Table 1. Image legend

Number	Description
1	Left side controls
2	Right side controls

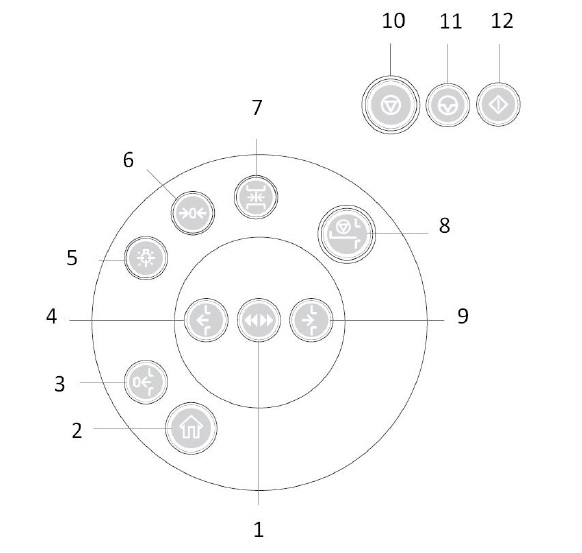

Table 2. Magnet control buttons

Number	Button icon	Description
1		In/Out Fast moves the table in/out of the magnet bore at a faster rate when pressed simultaneously with the In or Out button.
2		Home returns the cradle to the home position, fully retracted on the patient transport.
3		Back to Landmark returns the table back to last landmarked position.
4		Out retracts the cradle from the bore. To retract the cradle quickly, press In/Out Fast button and simultaneously press the Out button.
5		Alignment turns alignment lights on or off. When the alignment lights are on, this button is lit and the “landmark on” message is posted on the status panel.
6		Landmark enters the defined landmark.
7		Advance to Scan advances the defined landmark to magnet isocenter.
8		Stop Table halts in-and-out cradle movement. This button overrides all other cradle motion commands.
9		In advances the cradle into the bore. To advance the cradle quickly, press In/Out Fast button and simultaneously press the In button.
10		Stop scan stops a scan during either prescan, an active scan, or after Pause Scan is pressed.
11		Pause Scan temporarily halts scanning.
12		Start Scan restarts a study if Pause Scan is pressed, or cradle motion exceeds 2 mm.
